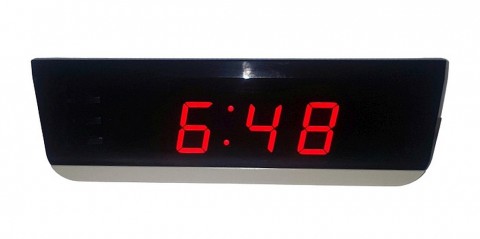

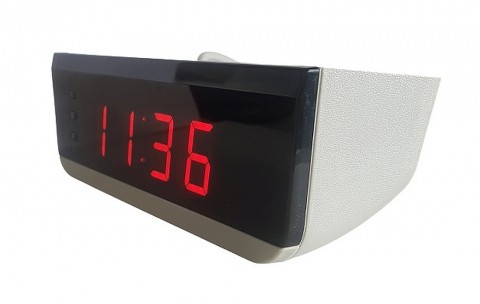

Roof Mount Bus Clock 12/24v with 12/24 Hour Display LYX230

Roof  (overhead) mounting bus or motorhome clock, attractive light gray ABS case
Angled black display face, HUGE 4 digit red LED with 38mm  (1.5") high digits

• 10 to 32 volts DC operation
• Draws just 23mA at 13.5 volts, or 13mA at 27 volts
• 12 or 24 hour display format, user selected
• Dimmable display facility (requires user supplied switch or connection to vehicle light switch)
• Centre colons flash at 1 second intervals
• Separate power lead allows clock display to be turned off, but clock time setting retained
• Power lead is 250mm (10"), with bare wire ends
• Overall dimensions W228mm x H73mm x D78mm (9" x 2.9" x 3")
• Operating temperature range -30C to +70C (-22F to +168F)
• Simple mounting to the overhead surface with 2 concealed screws (not supplied)

Click on the PDF logo to view the operating instructions
