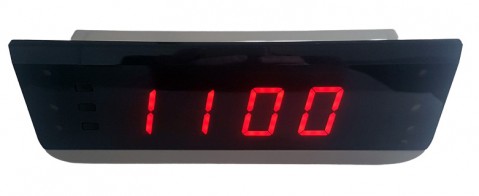

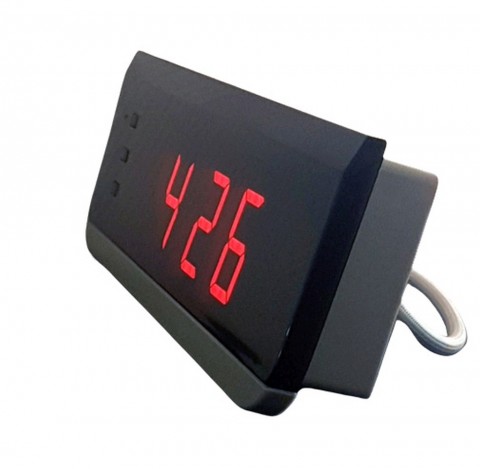

Panel Mount 12/24volt Bus Clock LYQ230

Bulkhead (Panel) mounting bus or motorhome clock, with black coloured front escutcheon
HUGE 4 digit red L.E.D. display, 38mm  (1.5") high digits

• 10 to 32 volts DC operation
• Draws just 23mA at 13.5 volts, or 13mA at 27 volts
• 12 hour or 24 hour display format - choose at time of ordering
• Dimmable display facility (requires user supplied switch or connection to vehicle light switch)
• Centre colons flash at 1 second intervals
• Separate power lead allows clock display to be turned off, but clock time setting retained
• Power lead is 250mm (10"), with bare wire ends
• Overall dimensions W228mm x H73mm x D30mm (9" x 2.9" x 1.2")
• Operating temperature range -30C to +70C (-22F to +158F)
• Simple mounting to a bulkhead, wall or any vertical flat panel with 2 concealed screws (not supplied)
• Requires minimum 30mm (1.2") clearance at the rear.
• Cutout size 180mm x 60mm (7.1" x 2.36")

Click on the PDF logos to view the operating instructions

12 HOUR MODEL       24 HOUR MODEL
