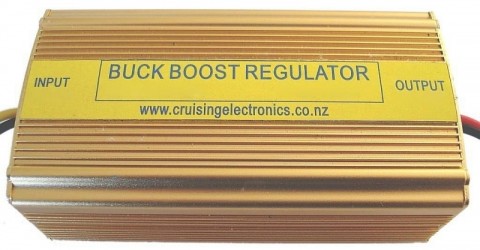

13.8 Volt 120 Watt Buck Boost Regulator

This clever regulator provides a stable 13.8 volts output from your varying input voltage
Input voltage 10 to 36 volts, fixed output 13.8 volts 120 watt
Rugged anodised aluminium case
* COMPLETELY ISOLATED INPUT, OUTPUT AND CASE *

• Input voltage allowable 10 to 36 volts, DC only
• Output voltage fixed at 13.8 volts DC, ± 2%
• Maximum output current 8 amps
• Standby current (no output load) < 50mA
• Conversion efficiency >= 85%
• Output and input short circuit protection
• Output voltage ripple factor < .7%
• Input/Output isolation 500 volts
• Over temperature protection
• Weight 435 Grams (1 lb)
• Dimensions 150 x 48 x 68 mm (6” x 1.8” x 2.6”)
• Ambient temperature allowable from -20 to +80 degrees C (-4 to +176 F)
• Input and output connections by colour coded bare wire leads

All specifications subject to change or design improvements without notice
Click on the PDF logo to view installation instructions
